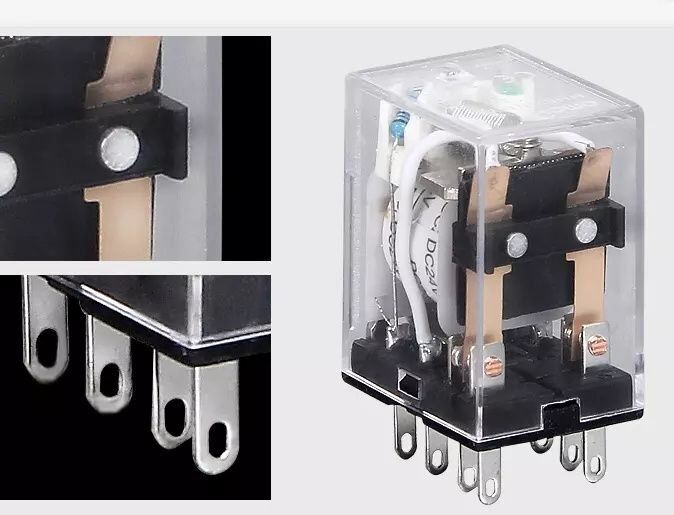

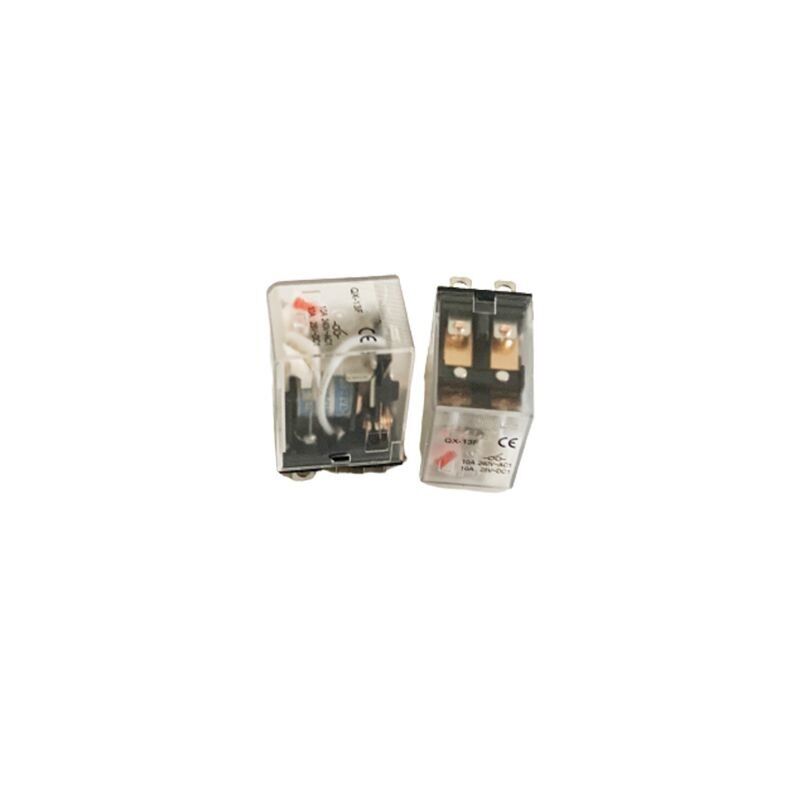

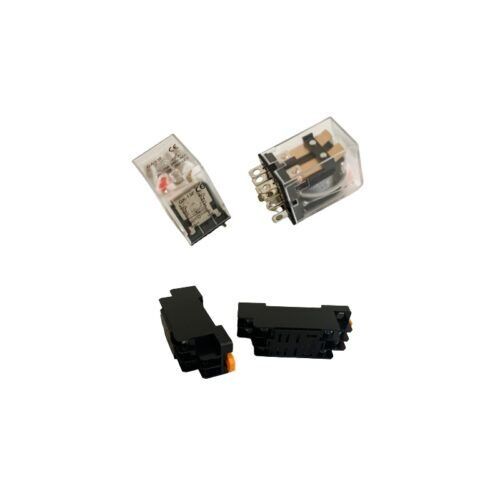

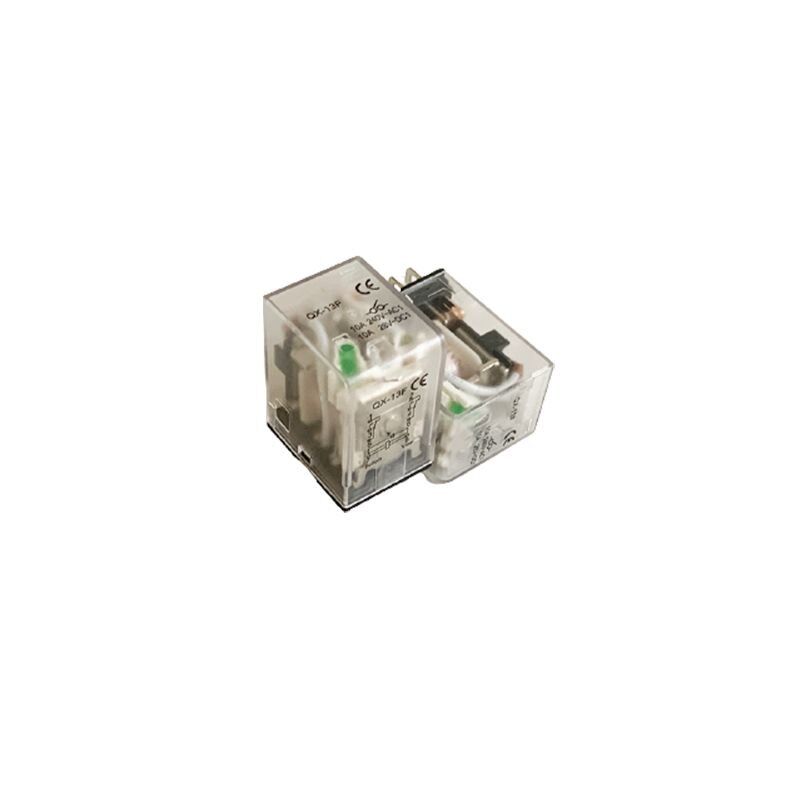

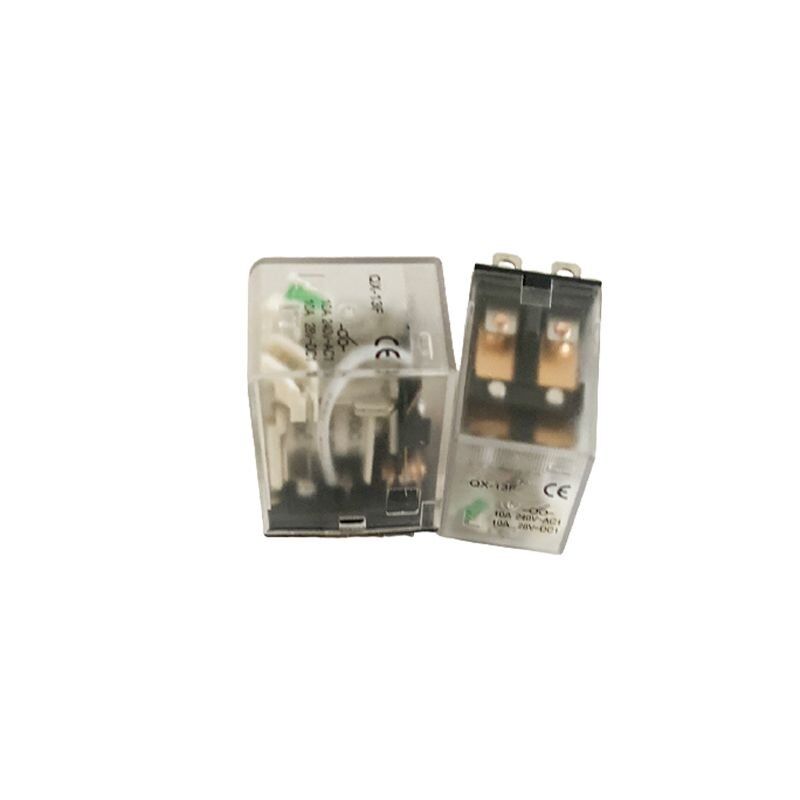

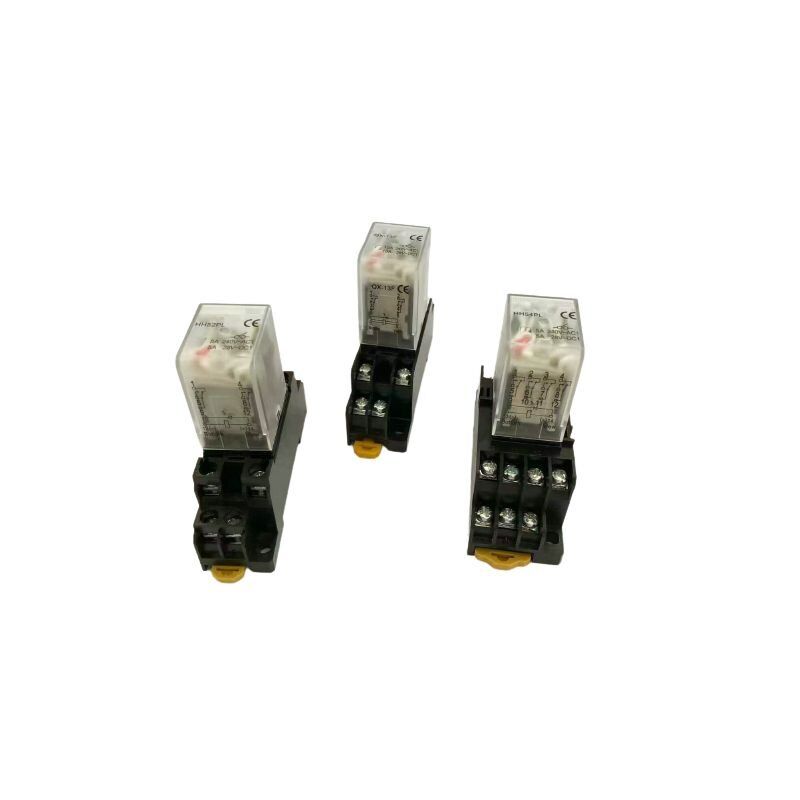

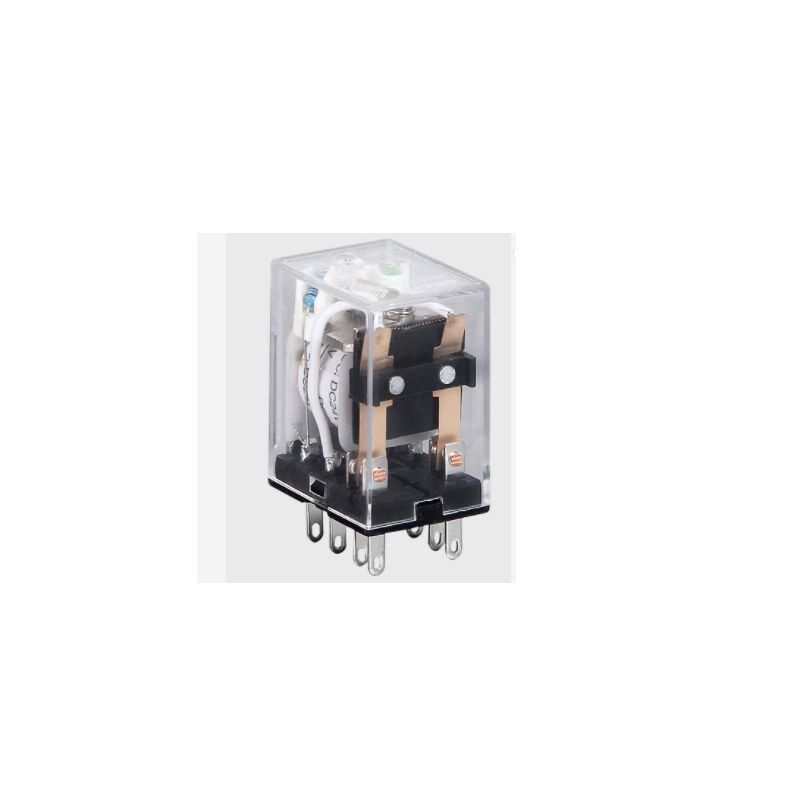

Relay X-22F(D)2Z with lamp MY2N-J 8 pin relay DC12V 24V/220VAC

Electromagnetic relays are generally composed of iron cores, coils, armatures, contact reeds, etc. As long as a certain voltage is applied to both ends of the coil, a certain current will flow through the coil, which will produce electromagnetic effects. The armature will overcome the pulling force of the return spring to attract to the iron core under the action of electromagnetic force, thereby driving the moving contact and the static contact of the armature to attract.


Additional information

Place of Origin

Zhejiang, China

Model Number



General Purpose, various usage

Protect Feature

Sealed, various feature

Model Name


Brand Name



Miniature, various size

Contact Load

Low Power, various


18 months

MY2N MY4N MK2P MK3P relay

Our strengths are our speedy support, excellent product appeal,

and our ability to offer reliable advice.

 In addition to our publicized products, we handle a large number of other items.

Please consult with us on any matter or issue you may have.

We can provide new products and technology a step ahead of other companies.

Low Signal Relay

Ultra-miniature, Highly Sensitive SPDT Relay for Signal Circuits

  • Ultra-miniature at 12.5×7.5×10 mm (L× W× H).
  • Wide switching power of 1 mA to 1 A.
  • High sensitivity: 150 mW nominal coil power consumption.
  • Fully-sealed construction offering environment resistance.
  • Conforms to FCC Part 68 requirements for coil to contacts.
    (1,500 V, 10 × 160 νs)

Compact DC Power Relays Capable of
Switching 400 V 15 A DC loads

  • Actualize a high capacity interruption through the function of extinction of magnetic arc by adopting high-efficiency magnetic circuit.
  • Actualize improvement of inrush-withstand performance and a long-life by adopting Omron’s own contact driving system.
  • Actualize the power saving.
  • Small and lightweight type.
    Size: H31 mm × W27 mm × L44 mm, Weight: approx. 50 g



V Miniature Basic Switch

Miniature Basic Switch that Offers High Reliability and Security

  • Wide variation of best-selling microswitches with switching currents of 10 to 21 A.
  • Can be used for interrupting current when doors are opened or closed.
  • Available in two types of cases: thermoplastic resin and thermosetting resin.
