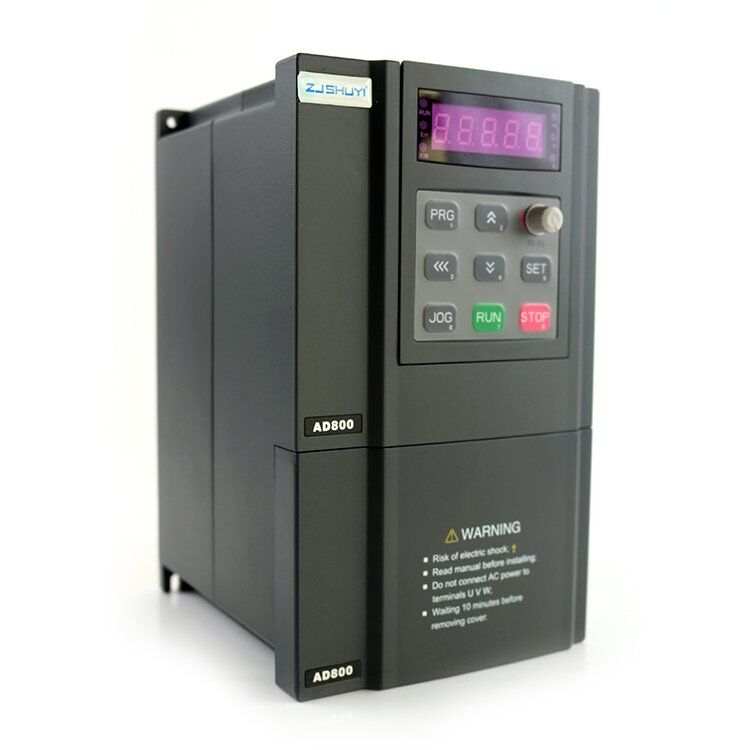

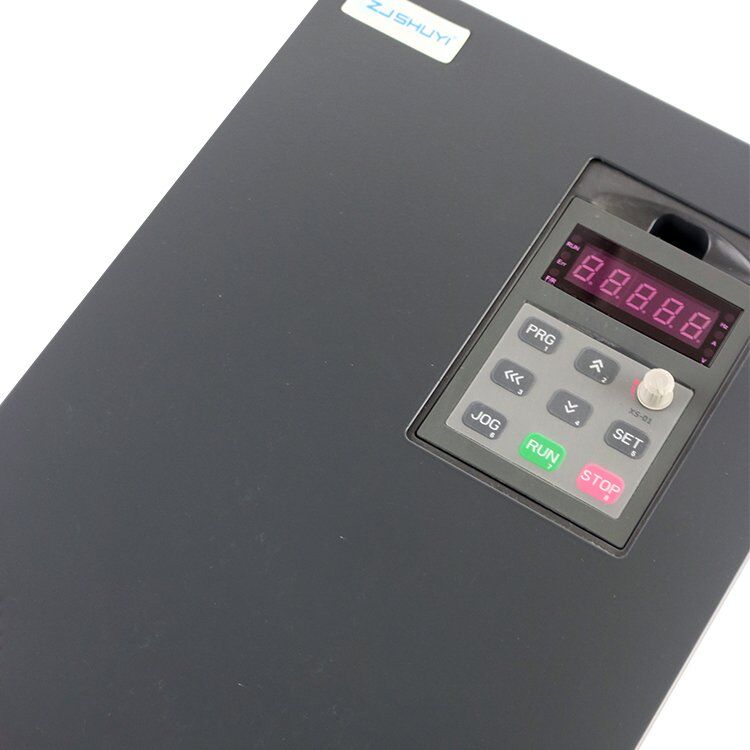

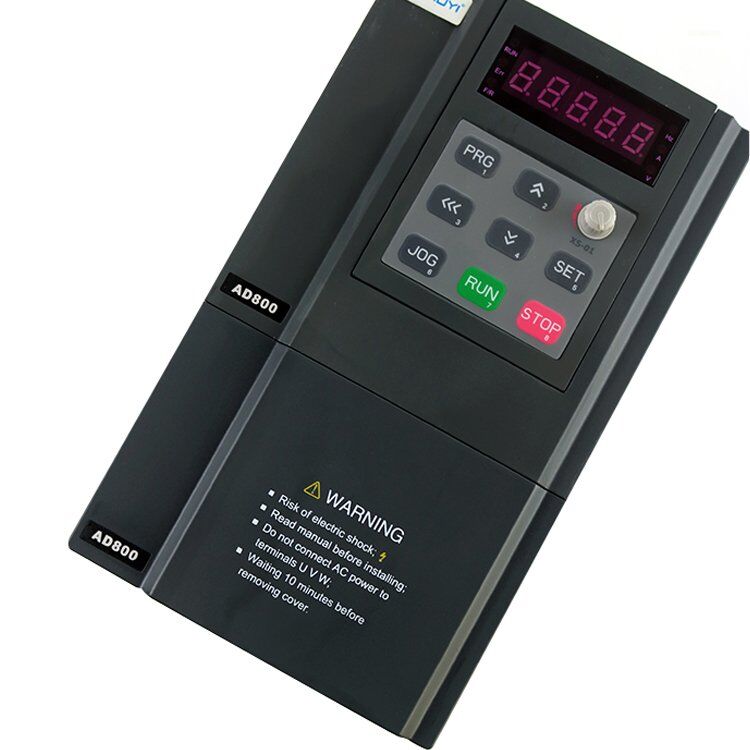

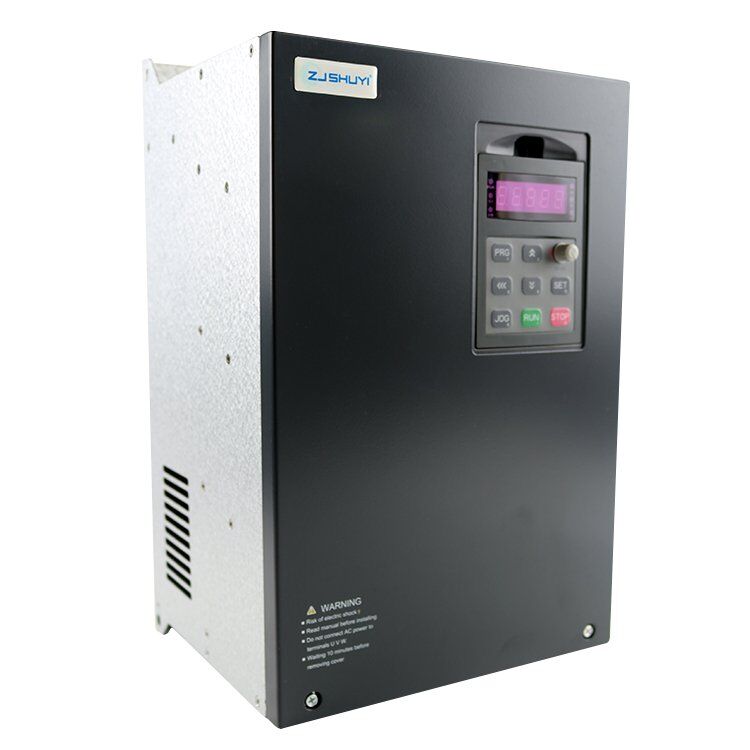

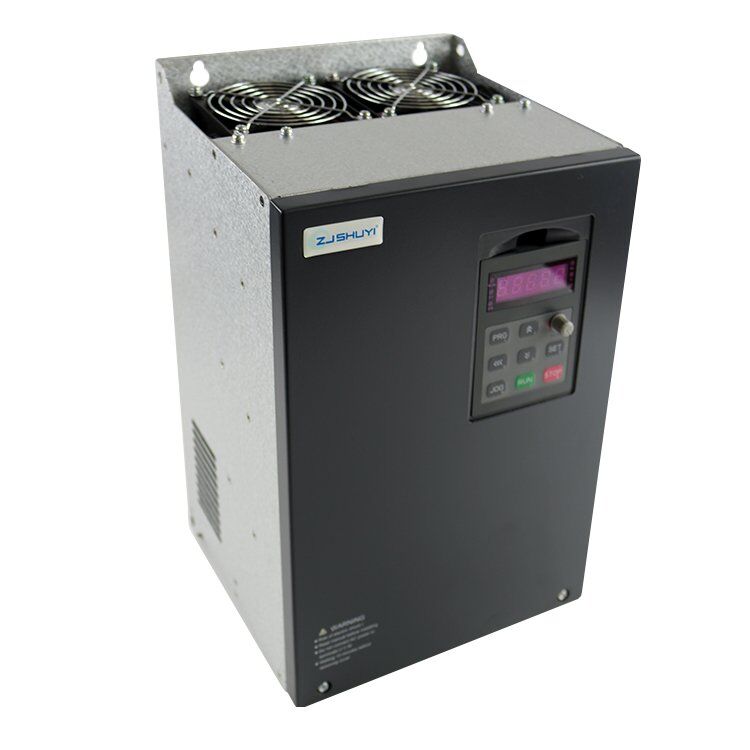

SHUYI 380V AD800 Series Frequency Inverter

  • Multiple protection makes the frequency converter highly intelligent, which can not only protect its own safe and normal use, but also greatly protect the safe operation of the front and rear equipment.
  • The control function is complete, can well cooperate with other control equipment and instruments, realize the centralized real-time monitoring and control of the systematic network, the integrated development, for the user to save the trouble of selection system compatibility and save the cost.
SKU N/A Category Tag

Parameter

Additional information

Brand Name

AD800 vector type

Power range

4T0.75-400KW

Input Voltage

Three-phase380V±15%

Control mode

No PG vector control, V/F control

To protect the

Overcurrent, overload, overvoltage, undervoltage, overtemperature, phase loss, etc.,, Provides up to 25 fail-safe functions

Installation method

wall

Output Power

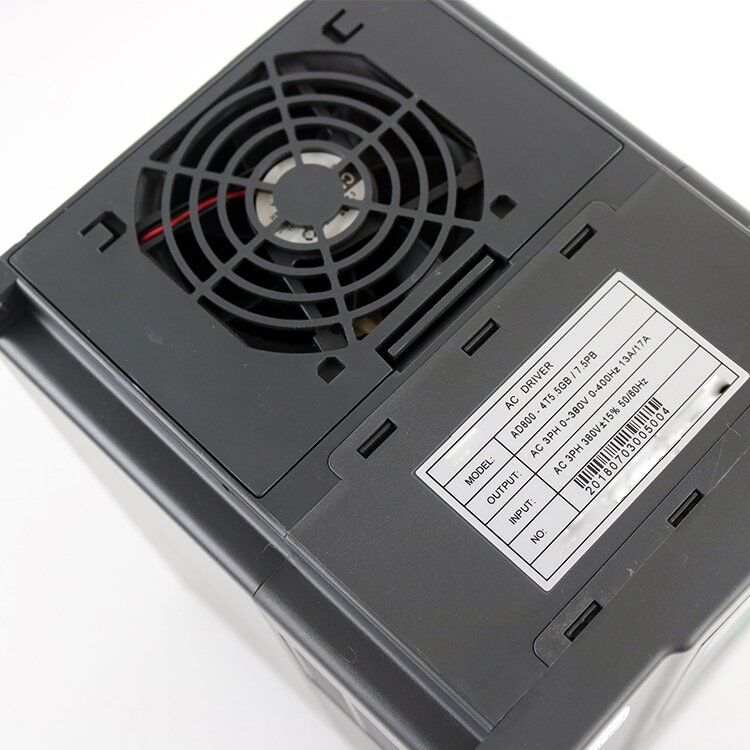

AD800-4T0.75GB, AD800-4T1.5GB, AD800-4T11GB, AD800-4T15GB, AD800-4T18GB, AD800-4T2.2GB, AD800-4T22GB, AD800-4T3.7GB, AD800-4T30GB, AD800-4T37GB, AD800-4T45GB, AD800-4T5.5GB, AD800-4T55GB, AD800-4T7.5GB

Cooling mode

Wall-mounted/cabinet type

Brief introduction of function features:

1. Compact and reasonable structure, beautiful appearance;

2, flexible control function, modular structure for easy installation and maintenance;

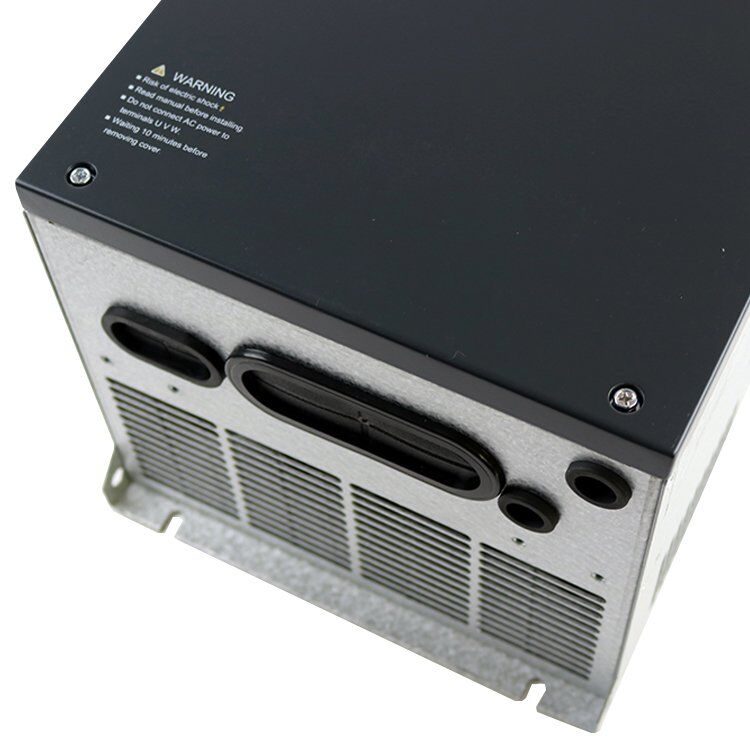

3. Fully enclosed and independent air duct design, dustproof, gas proof, corrosion proof, strong environmental adaptability;

4, wide grid voltage design, can calmly cope with the network voltage fluctuations of 15%;

5, Color with advanced control algorithm and unique current limiting technology, with super overload capacity and dynamic response speed;

6, frequency source combination, there are rich frequency source superposition and switching mode, suitable for synchronous control.

7, Multiple protection function, under voltage protection, over voltage protection, overload protection, leakage current protection, output short circuit protection, etc.

8, Built-in simple PLC function, can achieve 15 speed control and pendulum control ability;

9, Rich monitoring function, can monitor the setting frequency, operation frequency, bus voltage, motor speed, etc.;

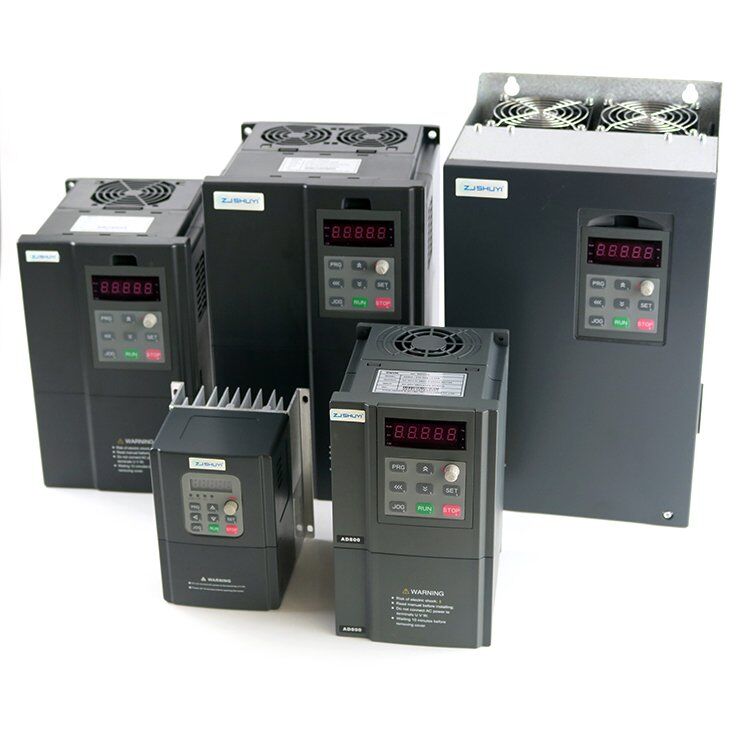

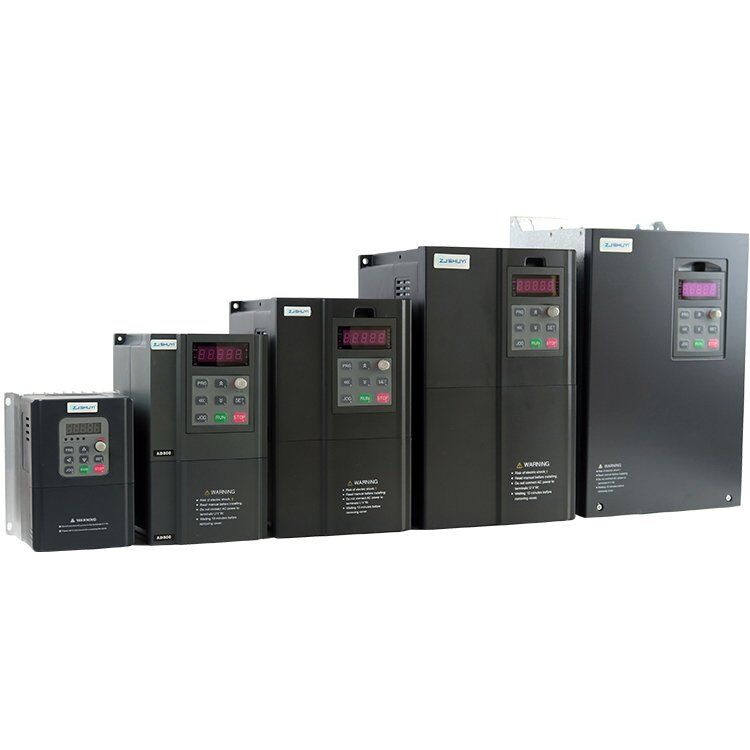

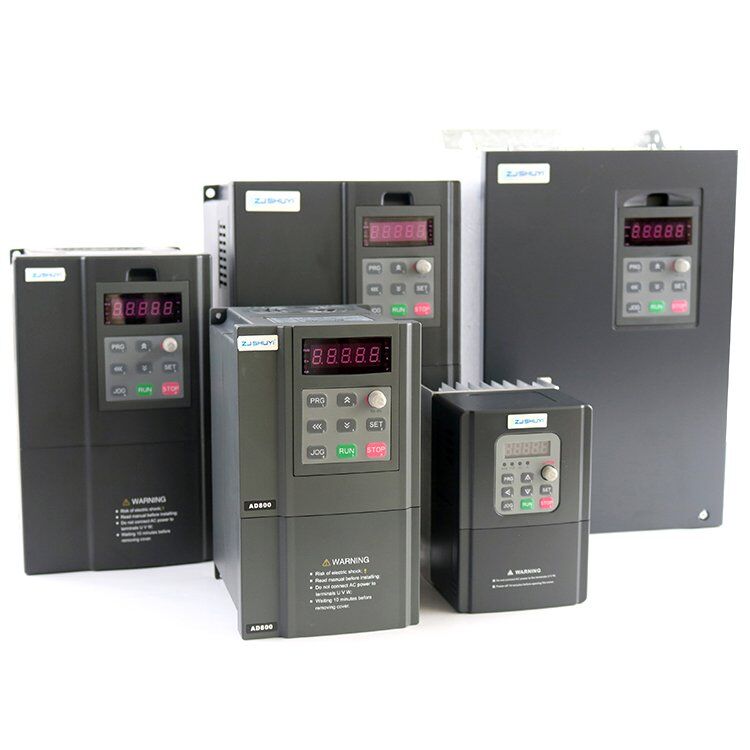

AD800 series high performance vector frequency converter, power range: 0.75-400KW, generous hardware configuration, to meet the needs of high overload and heavy load.

AD800 series inverter adopts the most advanced current vector control technology and has excellent driving performance.180% starting torque, rated current 150%, up to 60S, 100% impact load quick response.Reliable torque limiting and fast current limiting technology can reduce tripping of frequency converter as much as possible.The product has powerful functions, with the flexible expansion card PG card, the function and performance are further extended to meet all the application functional occasions.

The launch of AD800 products not only represents the company’s frequency conversion control technology has entered a new stage, but also provides a wider application space for the whole market.
