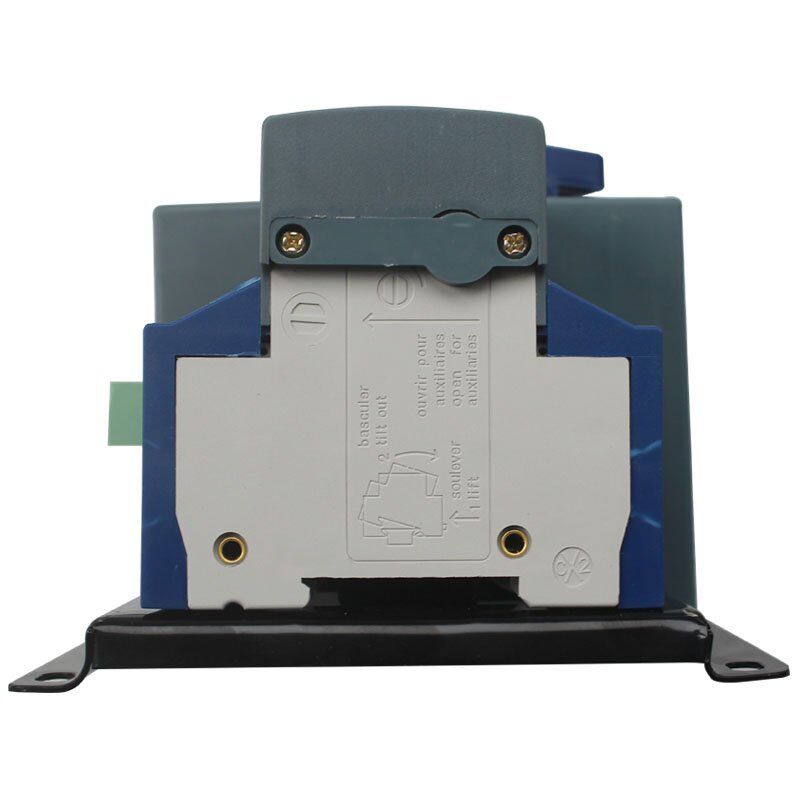

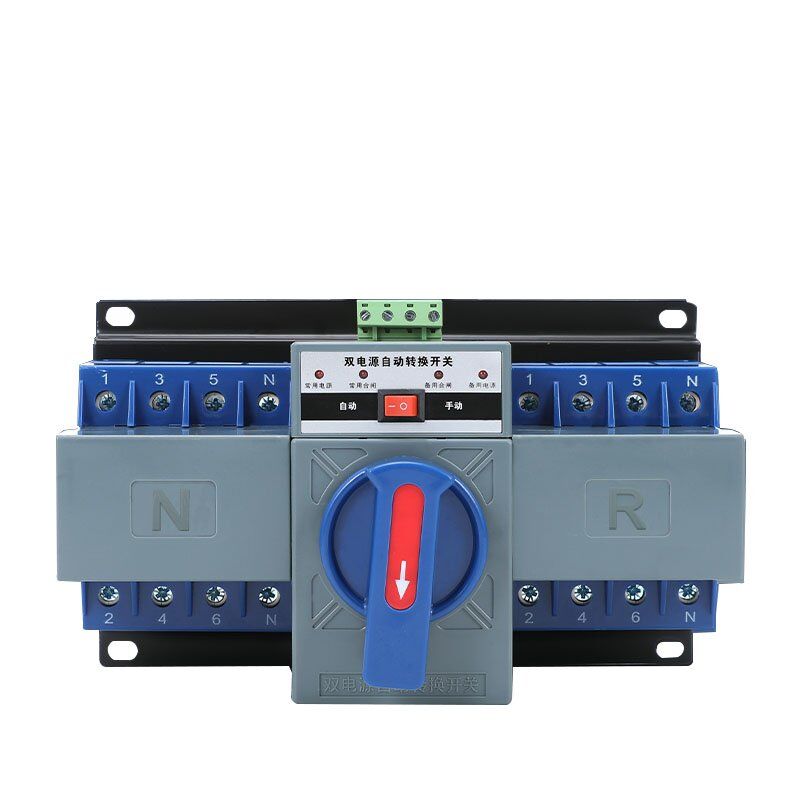

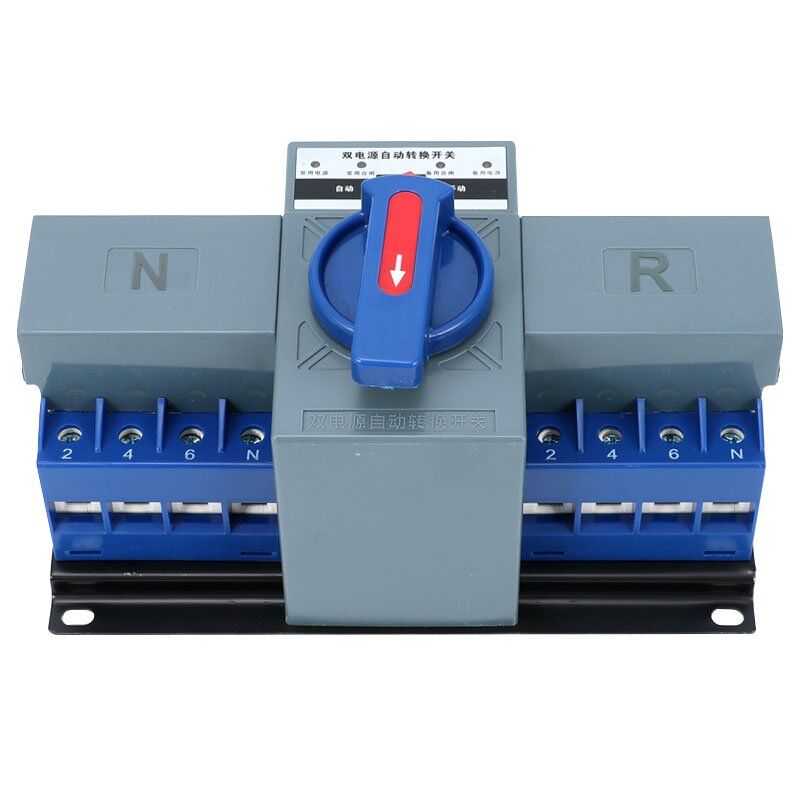

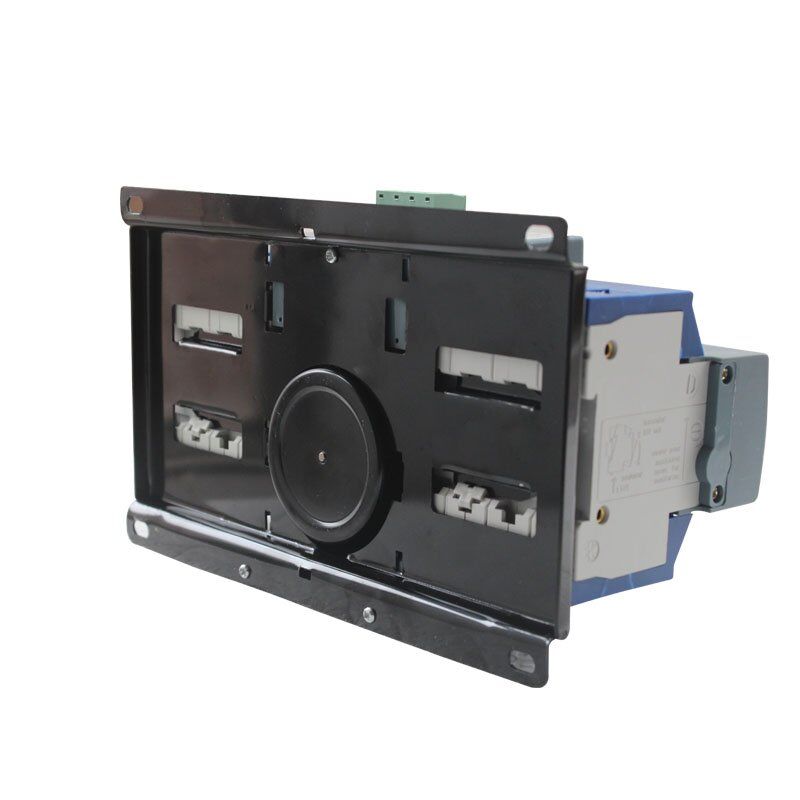

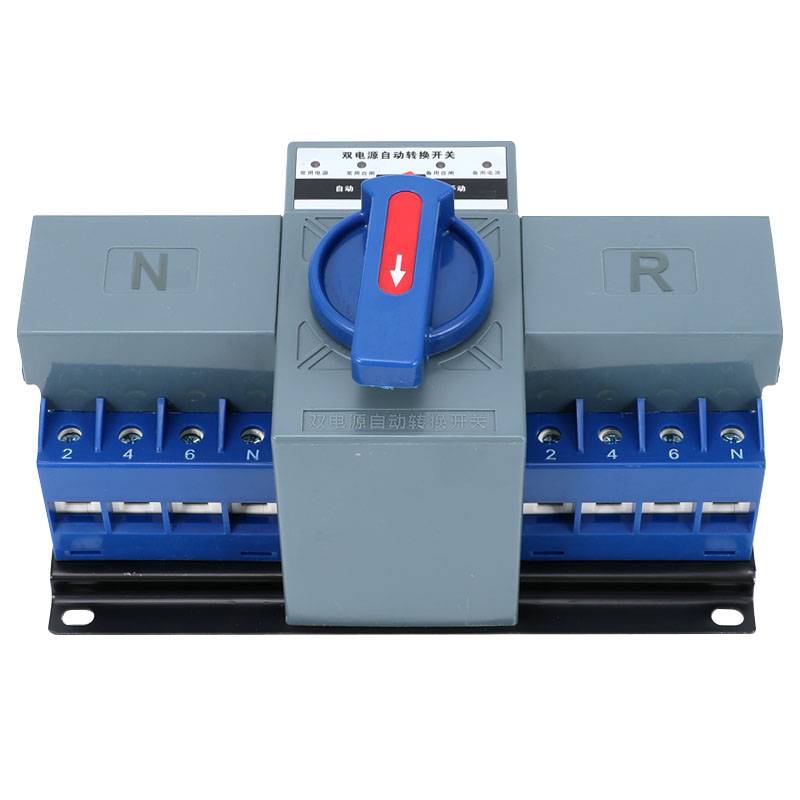

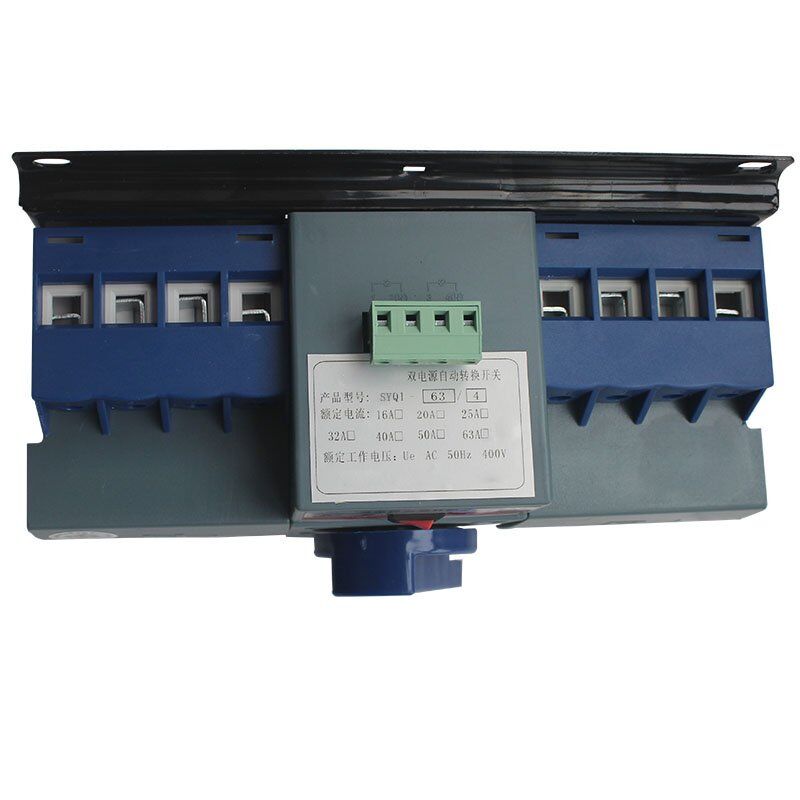

SYQ1-63/4 16A-63A 2P 3P 4P Automatic transfer switch
The dual power automatic transfer switch is a device controlled by a microprocessor, which is used for switching between grid power and grid power or grid power and generator power in the power grid system, so that the power supply can be continuously supplied. The series dual power supply, when the common power suddenly fails or the power is cut off, it will be automatically put into the backup power supply through the dual power supply switch, (the backup power supply can also be powered by the generator under small load), so that the equipment can still operate normally. The most common are elevators, fire protection, surveillance, lighting, etc.
Parameter
Additional information
| Brand Name | SYS1, ZJSHUYI |
|---|---|
| Model Number | SYQ1-63/4 |
| POLE | 2P 3P 4P |
| OPERATING VOLTAGE | AC230/380 |
| WORKING FREQUENCY | 50Hz/60Hz |
| WORKING CURRENT | 10A-630A |
SYQ1-63/4 16A-63A 2P 3P 4P Automatic transfer switch
Structure and characteristic
SYS1 series automatic transfer switch is composed of switch is composed of switch body and controller. Adopt the electromagnetic driver, the working power of controller transfer is based on the main power and the standby power. AC220V power supply, without additional source. Switch body have an electrical or mechanical switch instruction as an isolation indicator function.
