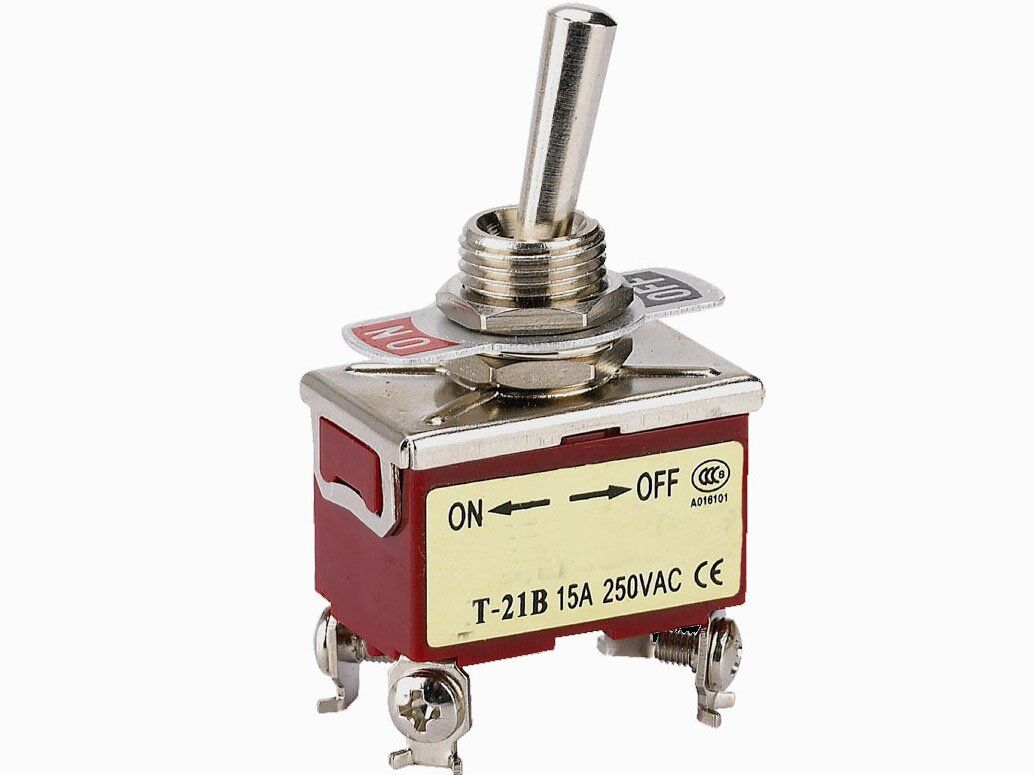

SYT-21B 15A/250VAC 25A/250VAC Bipolar single throw type Toggle switch

Bipolar single throw type Toggle switch:

Model Number:T-21B

Rating at:15A/250VAC 25A/250VAC
Adopt outer shell with intensive plastic and sealed construction, better mechanical strength and water-proof and oil-proof;Side fixed form and swift contact;”Variety of levers;Widely used in Mechanical equipment ,automatic machine, and instrument, electro motion tool etc.

Parameter

Additional information

Brand Name

ZJSHUYI

Model Number

T-21B

Model Name

Bipolar single throw type

Rating Load

15A/250VAC, 25A/250VAC

Operating Temperature

-25~+80℃

Product name

Toggle switch

Application

Home appliance,electronic device,auto electronic,automation

Material Body

PBT cover and PC base

Protection

IP40

Mechanical Life

500,000 above

Electrical life

100,000 times above

Colour

blue

Operating speed

30times/min

Characteristics

Compact Design

Place of Origin

Zhejiang, China

Application attentions:

1.According to the difference of load and current value, rated loadshould be taken note.Current value of this series is 10A and 15A;

2.When transporting and moving, pls take note of the short circuit
or open circuit may happen in internal wiring;

3.Please take note of the level of protection when used in water, oil and
bug dust.This series has protective type and unprotective type;

4.The immediate cause for broken is stress and attack, please pay attention;

5.Warning mark’Danger! High Voltage!’ and’Take note!’ remind us
pay attention to personnel safety and correctly operation.

Duration Estimation

Pls kindly note, it’s important to know the duration of of the whole order process.

Exist sample lead time

For the hot sale model and supplier standard model products, generally they have samples in stock, so you can require a sample quickly and easily. Send the sample request, supplier ship out the samples in 1-3 days by express, you will receive the samples in 7-30 days.

Custom sample lead time

Custom sample lead time depends on your specific requirements and products.OEM packag, such as paper box packag, it’s easy for any suppliers to do it, if you need exist product in custom packag, it takes 4-7 days will be ok.

Production lead time

It depends on the order quantity. The production lead time refers to the number of days required by the factory. After receiving the order, the entire production is completed and ready for shipment. Most of the product supply takes 15-30 days.

Shipping time

There are different shipping ways for options. Air shipping is fast but expensive, it’s a good choice for urgent orders, it only takes 7-10 days max. Sea shipping is the most economical shipping way, time is much longer than air, takes 20-30 days.

Inventory& Low MOQ Support

Inventory

20,000 square meters warehouse, plenty inventory and well managed.

One Stop Solution

Inventory includes, micro switches, limit switches, travel switches, foot switches, toggle switches, solid state relays,

Low MOQ

For retailers, we accept small orders. We thiank this is really good for you

Price Advantage

For distributors, buy in bulk can get a better price. Save purchasing costs for you.
