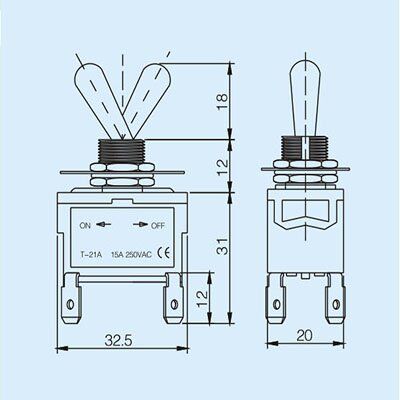

SYT-21A 15A/250VAC 25A/250VAC Bipolar single throw type Toggle switch
Bipolar single throw type Toggle switch:
Model Number:T-21A
Rating at:15A/250VAC 25A/250VAC
Adopt outer shell with intensive plastic and sealed construction, better mechanical strength and water-proof and oil-proof;Side fixed form and swift contact;”Variety of levers;Widely used in Mechanical equipment ,automatic machine, and instrument, electro motion tool etc.
Parameter
Additional information
| Brand Name | ZJSHUYI |
|---|---|
| Model Number | T-21A |
| Model Name | Bipolar single throw type |
| Rating Load | 15A/250VAC, 25A/250VAC |
| Operating Temperature | -25~+80℃ |
| Product name | Toggle switch |
| Application | Home appliance,electronic device,auto electronic,automation |
| Material Body | PBT cover and PC base |
| Protection | IP40 |
| Mechanical Life | 500,000 above |
| Electrical life | 100,000 times above |
| Colour | blue |
| Operating speed | 30times/min |
| Characteristics | Compact Design |
| Place of Origin | Zhejiang, China |
Application attentions:1.According to the difference of load and current value, rated loadshould be taken note.Current value of this series is 10A and 15A;
2.When transporting and moving, pls take note of the short circuit
or open circuit may happen in internal wiring;
3.Please take note of the level of protection when used in water, oil and
bug dust.This series has protective type and unprotective type;
4.The immediate cause for broken is stress and attack, please pay attention;
5.Warning mark’Danger! High Voltage!’ and’Take note!’ remind us
pay attention to personnel safety and correctly operation.
