Snap-in Rocker Switches for Fast Installation.
Explore snap-in rocker switches for fast installation. Learn how 2-position snap-in switches simplify panel mounting and provide reliable circuit control.
For more about our products, please click here.
Introduction
Snap-in rocker switches offer a simple solution for panel mounting. They eliminate the need for mounting hardware, reducing installation time and cost. Specifically, the snap-in design allows quick, secure installation without special tools. If your production requires efficient assembly, snap-in rocker switches provide a practical choice.
Snap-in Mounting Design

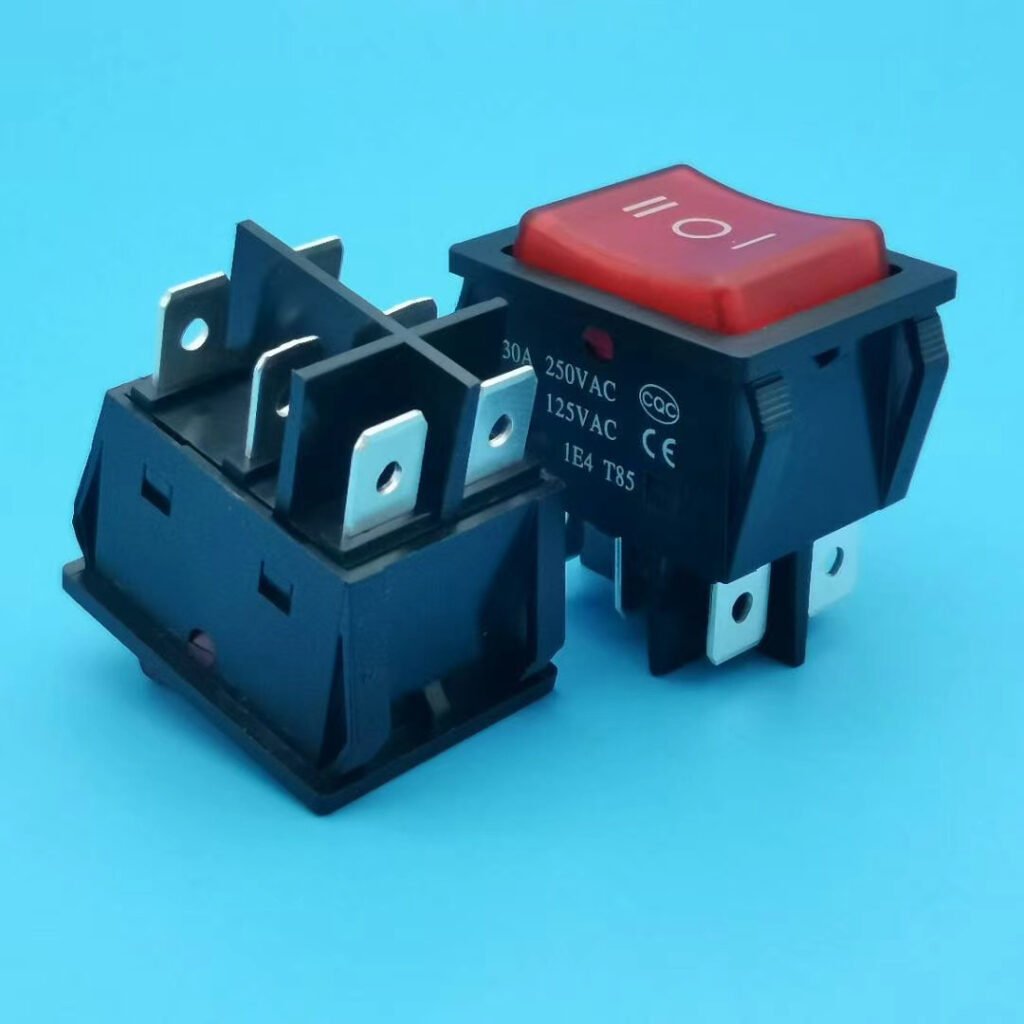

Snap-in rocker switches feature a housing design that clips directly into standard panel cutouts. The housing sides include retention tabs that snap into place when you insert the switch into the panel opening. These tabs hold the switch securely without additional mounting screws or brackets. The snap-in mechanism accommodates various panel thicknesses, typically from 0.8mm to 2.5mm . This design simplifies installation and reduces assembly time. For high-volume production, snap-in mounting offers significant time savings.
Two-Position Switching Action
These switches provide simple on-off control with two positions. The rocker actuator rocks between the ON and OFF positions, providing clear visual indication of the switch state. The two-position design suits applications requiring straightforward circuit control. Some models feature momentary action, where the switch returns to the OFF position when released. Others offer maintained action, where the switch stays in the selected position until manually changed. Both types provide reliable switching performance for various applications.
Key Features and Benefits

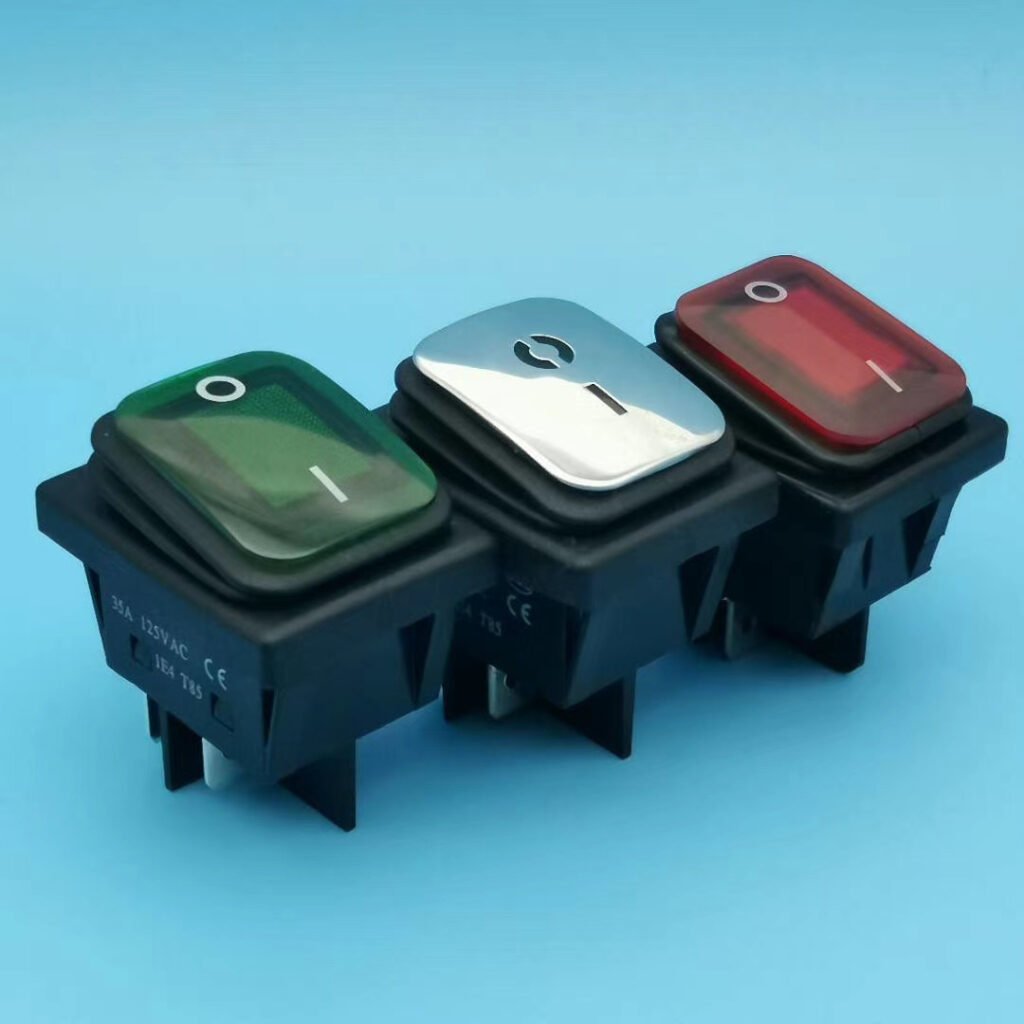

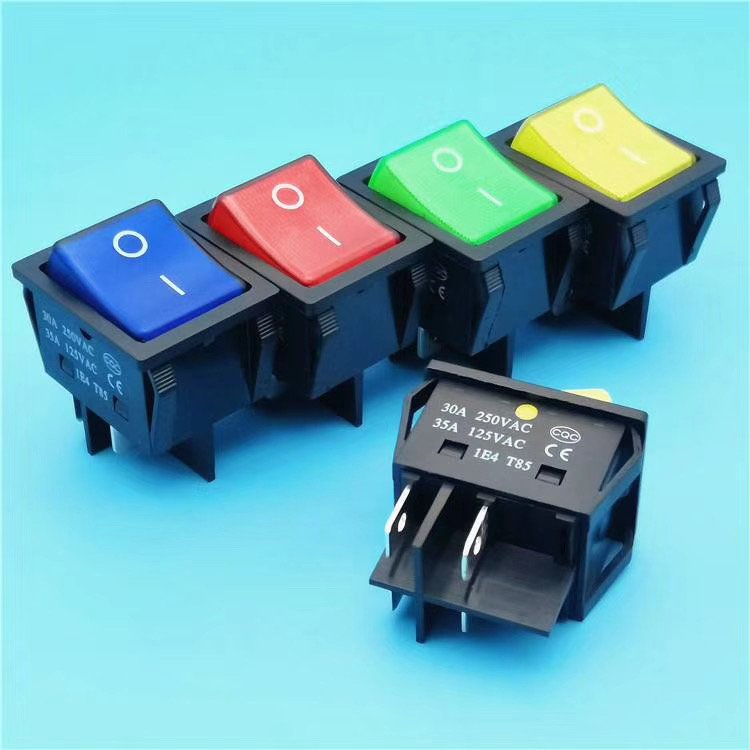

Snap-in rocker switches offer several advantages. First, installation requires no tools, reducing assembly time and labor costs. Second, the design ensures secure mounting. The retention tabs prevent accidental removal. Third, they are available with various termination styles. Quick-connect terminals, solder lugs, and PCB pins suit different wiring methods. Fourth, many models include illumination for status indication. LED-illuminated rockers improve visibility in low-light conditions. Fifth, they are available in various colors, allowing customization to match equipment design.
Common Applications
Snap-in rocker switches serve many applications where easy installation matters. In power supplies, they provide convenient on-off control. In industrial equipment, they serve as main power switches. In laboratory instruments, they provide user-friendly control. In medical devices, they offer reliable switching in compact designs. In consumer electronics, they serve as power buttons. In vending machines, they provide accessible control. In office equipment, they enable straightforward operation.
Selecting the Right Switch
Choosing the appropriate snap-in rocker switch requires careful evaluation. First, determine the panel thickness to ensure compatibility. Next, select the electrical rating needed for your circuit. Consider the termination style that suits your wiring method. Evaluate the illumination requirements. Also, check the environmental conditions of your application. Finally, consider the actuator color and marking requirements.
Conclusion
Snap-in rocker switch provide fast, tool-free installation for panel mounting applications. Their secure snap-in design, two-position switching, and various options make them suitable for many applications. By selecting the right switch for your needs, you can achieve efficient assembly and reliable circuit control.
